In modern steelmaking processes, the sliding gate system plays a critical role in controlling molten steel flow. Its performance directly impacts process safety, steel quality, and production efficiency. As the steel industry advances toward higher quality and efficiency, sliding gate technology continues to evolve, becoming a focal point of competition among refractory material producers and metallurgical equipment manufacturers.

1. Basic Structure and Function of Sliding Gate Systems

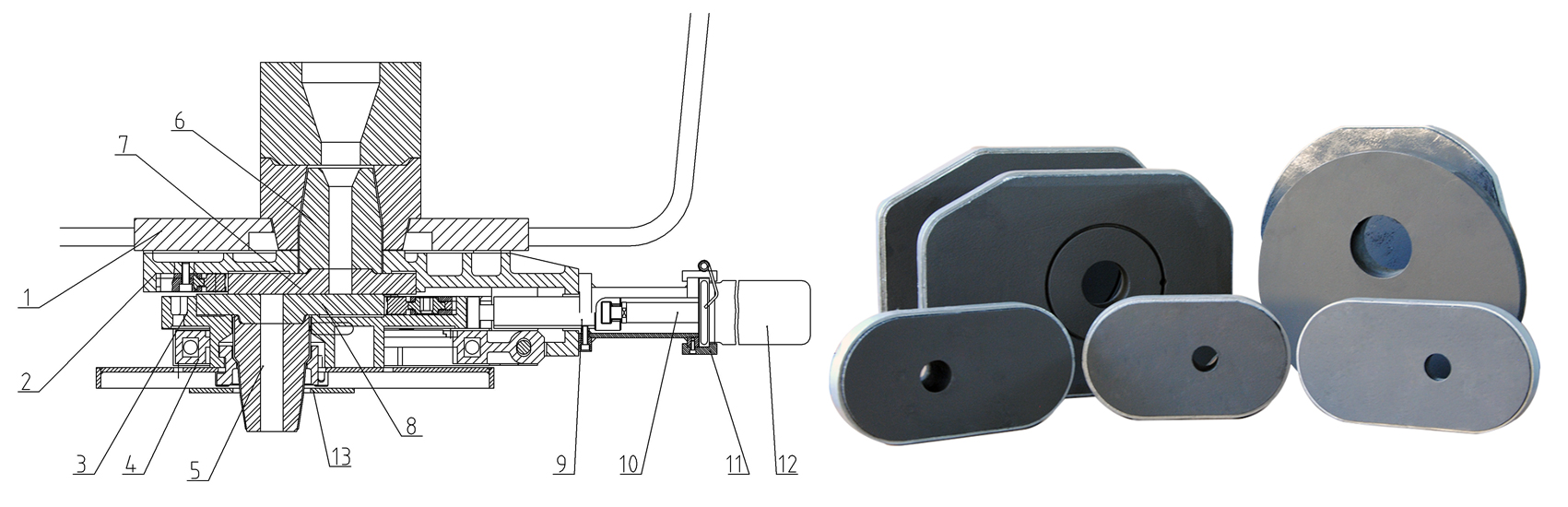

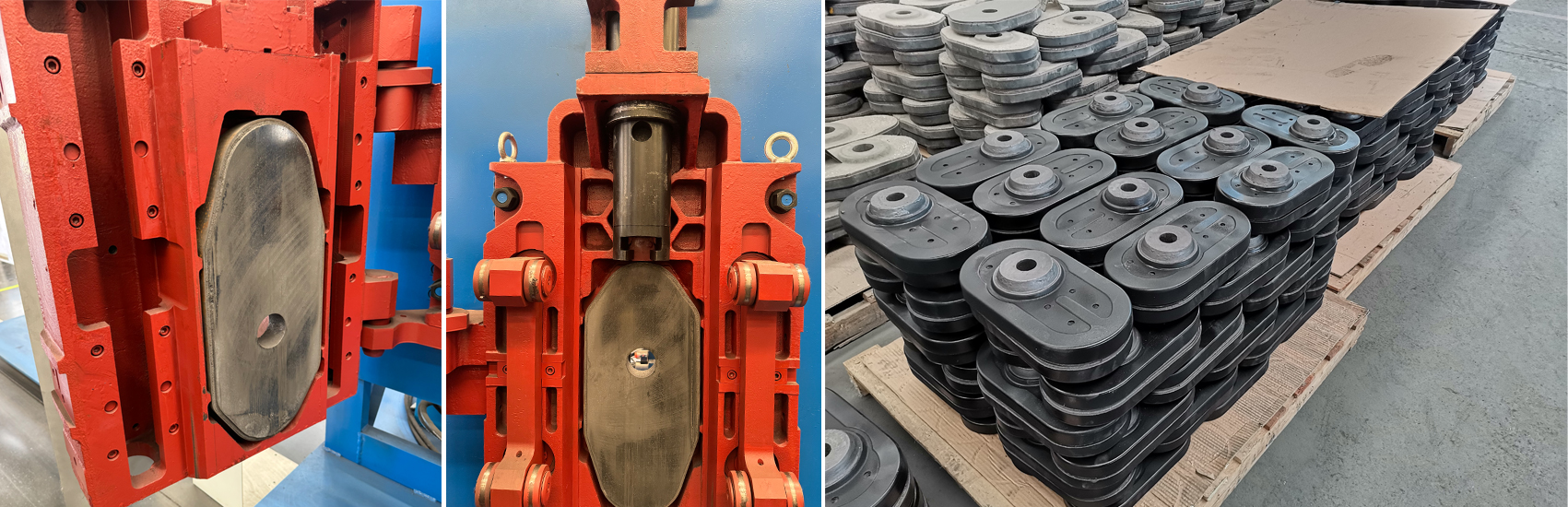

A sliding gate system typically consists of slide plates, a collector nozzle (seat brick), an upper nozzle, and corresponding metal frames. Installed at the bottom of the ladle, the system adjusts the steel flow by sliding plates to open or close the passage. Key functions include:

Regulating molten steel flow rate and velocity;

Preventing steel leakage during ladle tilting;

Ensuring consistent quality during continuous casting;

Protecting steel cleanliness from oxidation or inclusion contamination, especially in clean steel production.

2. Development of Refractory Materials for Sliding Gate Bricks

The core of sliding gate performance lies in the refractory materials used. These materials must withstand thermal shock, erosion by molten steel, and chemical attack. Common materials include:

Alumina-carbon slide plates: Cost-effective for standard steel grades;

Zirconia-based slide plates (ZrO₂): High resistance to erosion, used for clean and special steels;

Magnesia-carbon slide plates: Strong resistance to slag and high temperatures;

Composite slide plates: Incorporating nano-oxides or silicon carbide to improve thermal and mechanical properties.

As the proportion of high-end steel production increases, demands for sliding gate materials are rising—focusing on improved oxidation resistance, longer service life, and better thermal shock performance. This has driven R&D in raw material purity, structural optimization, and binder technology.

3. Trends Toward Automation and Smart Systems

Sliding gate systems are evolving toward automation, modularity, and smart control:

Automated control: Enables remote adjustment of gate position, enhancing operational safety and casting precision;

Online monitoring and alarm systems: Real-time data on temperature and wear, allowing predictive maintenance;

Quick-change design: Reduces downtime and increases ladle turnaround efficiency.

Digitalization allows steel plants to visualize the life cycle and performance of sliding gates, supporting smarter production and maintenance strategies.

4. Future Outlook and Industry Challenges

Looking ahead, sliding gate systems are expected to develop in the following directions:

Extended service life: Improved material and design to reduce replacement frequency;

Adaptability to clean steel production: Meeting stricter flow control and cleanliness requirements;

Cost and energy efficiency: Lighter designs with better energy-saving performance;

Eco-friendly manufacturing: Transition to low-carbon and chrome-free materials in line with green initiatives.

However, the industry still faces challenges such as rising raw material costs, variable on-site working conditions, and a lack of unified technical standards.

As the “throat” of molten steel flow, the sliding gate system is a small yet vital component in steelmaking. Each technological advancement brings profound impacts on process safety and efficiency. In line with the steel industry’s pursuit of high-quality development, the sliding gate system will continue to evolve toward higher performance, smarter control, and greener manufacturing.
